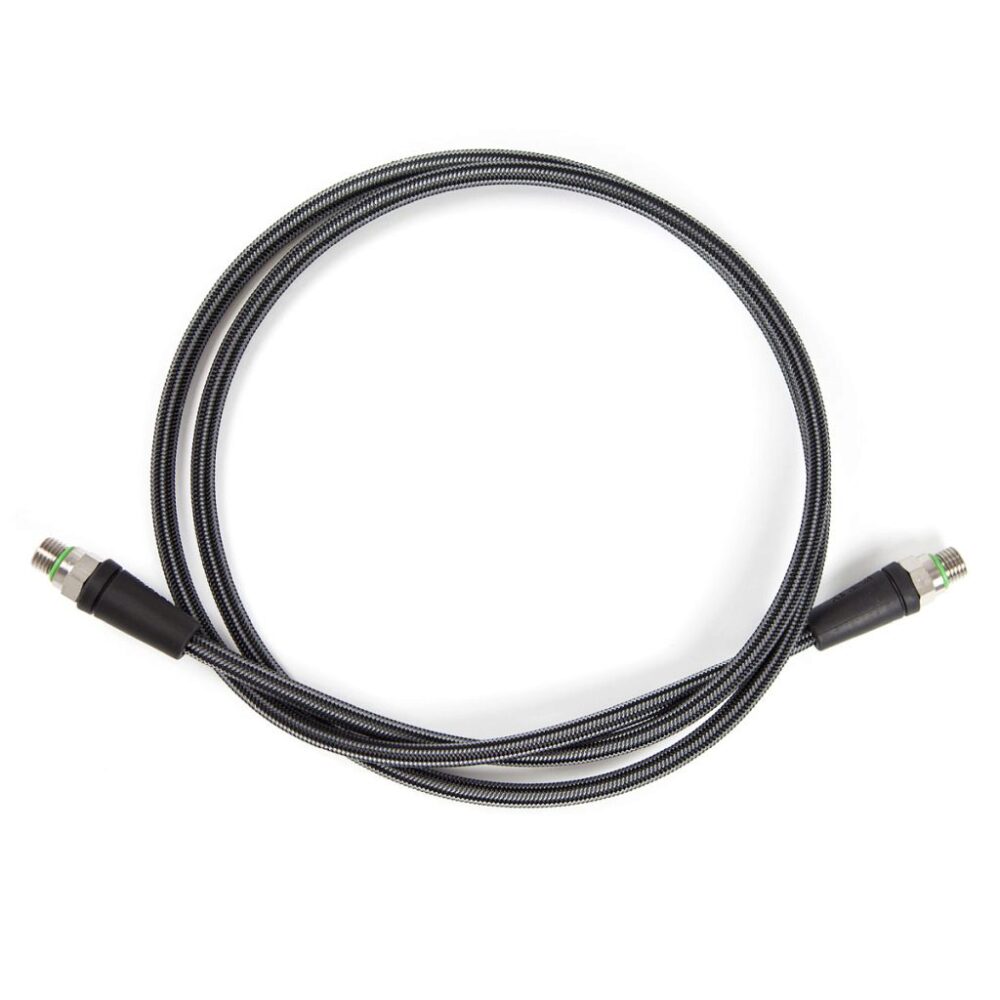

Miflex HP hoses are 35% thinner (7.8 mm) and about half the weight of traditional rubber hoses. These quality hoses use electroless nickel plated brass fittings on both ends. They are approved for use with up to 40% oxygen.

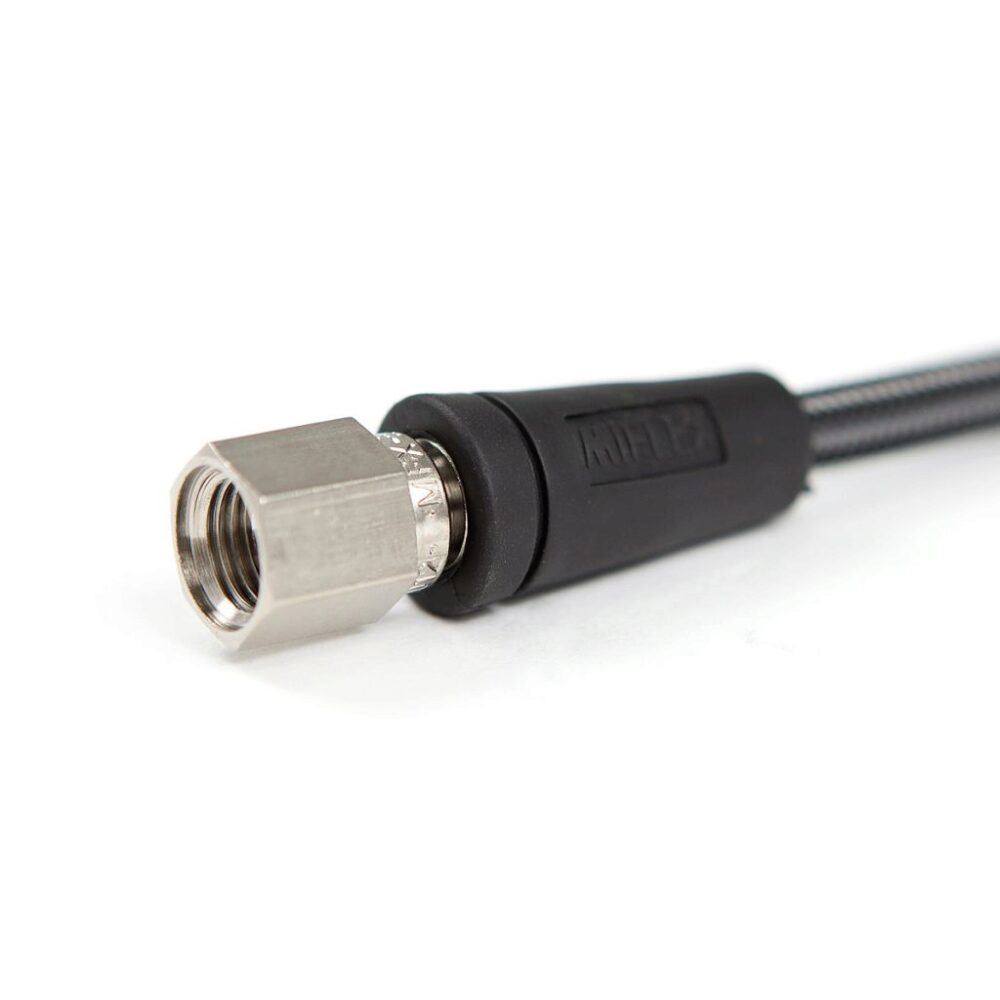

FEMALE FITTING

• 7/16” x 20 female threads
• Strain relief with shock absorber
• 14 mm deep airspool well

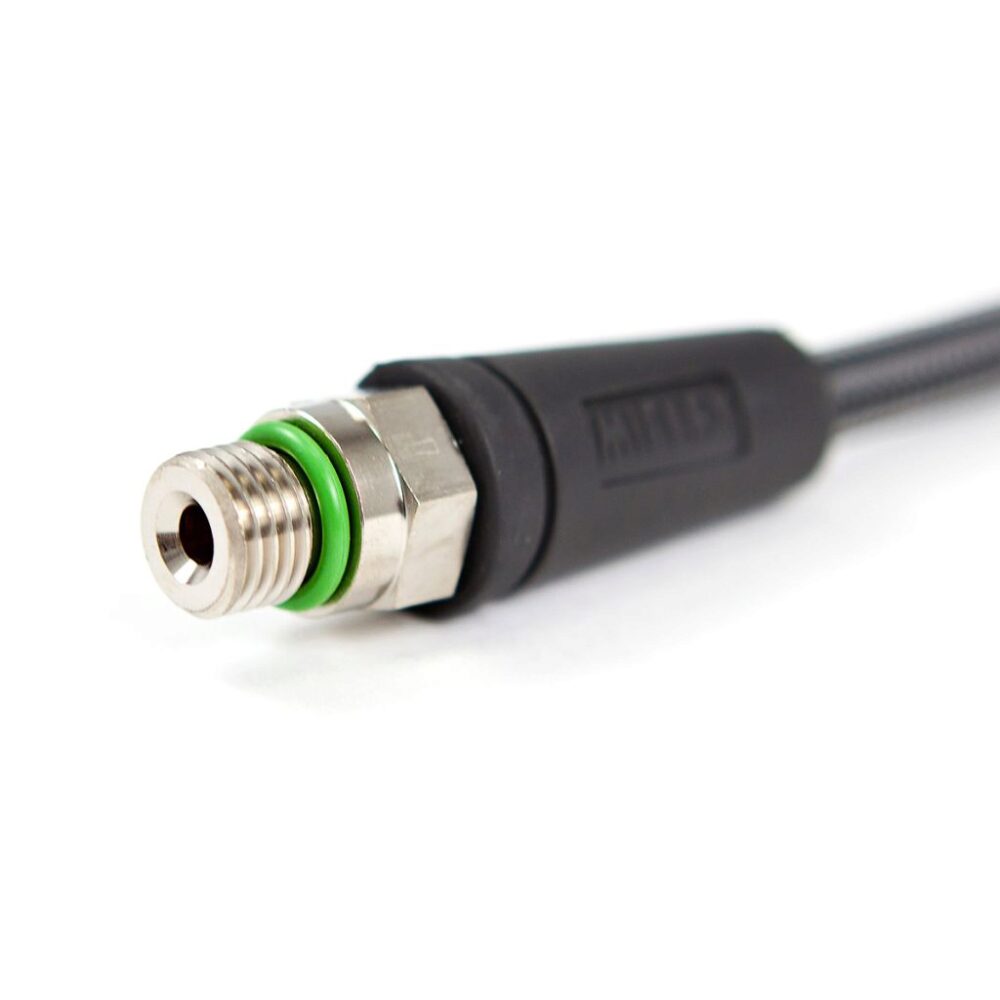

MALE FITTING

• 7/16” x 20 male threads
• Strain relief with shock absorber
• Green Viton O-ring

HOSE MATERIAL

• Graphite carbon color
• Less than 8 mm diameter
• Braided nylon exterior layer

Miflex Carbon HP hoses, are more robust and have more flexibility with electroless nickel plated fittings. Miflex hoses feature an external nylon safety braiding designed to outperform and outlive traditional rubber hoses. Made in Italy. Polyurethane compound liner Polyester inner layer with nylon outer layer braiding. Oxygen cleaned and tested at the factory.
